DAQ-Z100 system
The DAQ-Z100 system is a wireless multi-function control and data acquisition system. It includes 4 analog to digital input, 2 PWM (pulse generator), 4 pulse counter, 4 AC relay, 4 digital input and 2 digital output channels. DAQ-Z100 consists of 1 master and up to 8 slave devices with a zigbee network. Many kinds of electrical, mechanical industrial devices can be connected to each slave device.
Wireless system
We can control the devices which are attached to slave via wireless system. Using this system, we can get analog-to-digital converted data, pulse counter number and digital input data. We can also control the devices such as motor, lamp, sensors which are controlled by electrical signal. These kinds of control are done using the pc-based user interface program. -
Specifications
- CATEGORYDESCRIPTION
- ▷ ADC4 Channels
- 12-bit Resolution
- 100Hz Sampling Rate
- ▷ Relay4 Channels
- < AC(1A)
- ▷ Pulse Counter4 Channels
- < 50KHz
- ▷ Digital Input4 Channels
- Isolated from external circuit
- ▷ PWM/Pulse Generator2 Channels
- 1kHz~100kHz Freq.
- 1%~99% duty ratio
- ▷ Digital Output2 Channels
- Isolated from external circuit
-

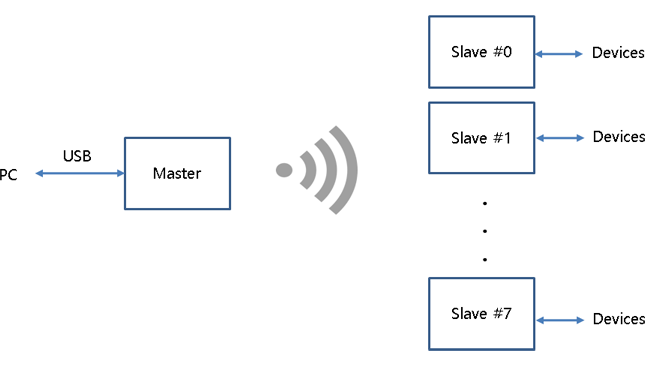

Overall System Block Diagram
-

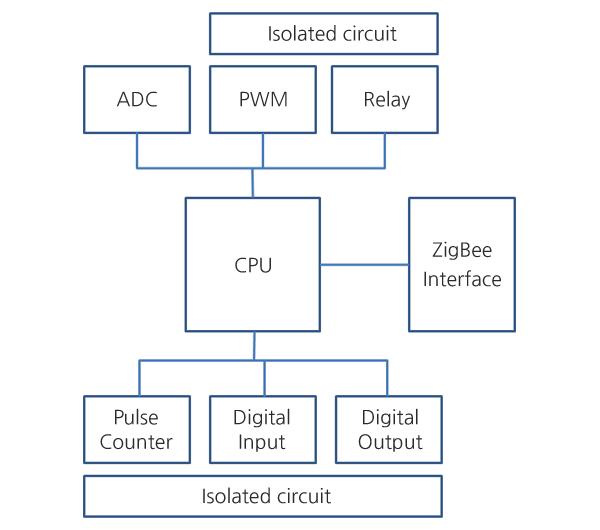

Slave System Block Diagram
-
DAQ-Z100(ZigBee)
